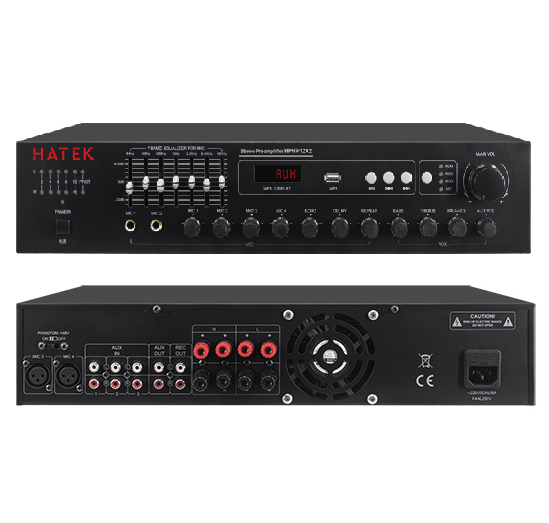

Integrated Conference Mixer Amplifier 2x60W - HP60X2

Description

HP60X2/HP12X2/HP25X2 amplifier integrates balancing function and pre-amplifier and post amplifier. The series is equipped with three sets of stereo sound source input ports, four microphone input ports, a stereo line output ports, a recording output port and two groups of amplifier output terminals.3-way stereo sound source channels’ volume can be controlled independently cooperating with function of “choose 1 out of 4”. Four mics can be controlled independently. Volumes of amplifier output are controlled together. Equipped with seven equal sections, output volume is adjustable.

Specifications

Model

HP60X2

Microphone input sensitivity

5 ± 0.5mV

Line input sensitivity

250 ± 50mV

MP3 input -10dB / 1KHZ sine wave

Output 23V

Line output voltage

950 ± 150mV

Total harmonic distortion

≤0.5 (1KHz, normal working conditions)

Line frequency response

20-20k Hz (± 3dB)

Microphone frequency response

80-20k Hz (± 3 dB)

Microphone 7 balanced

64HZ: ± 12dB

160HZ: ± 12dB

400HZ: ± 12dB

1KHZ: ± 12dB

2.5KHZ: ± 12dB

6.4KHZ: ± 12dB

15KHZ: ± 12dB

Line input and MP3 tone adjustment range bass

100Hz: ± 12dB

Treble

10KHz: ± 12dB

Signal to noise ratio (8Ω output)

≥75dB

Working power supply

AC220/ 50Hz

Phantom voltage

+ 48V

Rated power consumption

8Ω 60W

Protective function

Overload, over temperature, short circuit

Dimension (L × W × H)

483x 310x 88 mm

Package dimension (L × W × H)

520mm×395mm×170mm

Gross weight

9.5kg

Net weight

7.5kg
